- What it is
- Installing prefabricated glass-reinforced plastic manhole chambers, risers and covers for underground networks.
- Best for
- Sewage, storm drainage, irrigation, TSE, utilities and industrial effluent networks.
- Key benefit
- Corrosion-free, watertight chambers that are light and fast to install.
- Covers

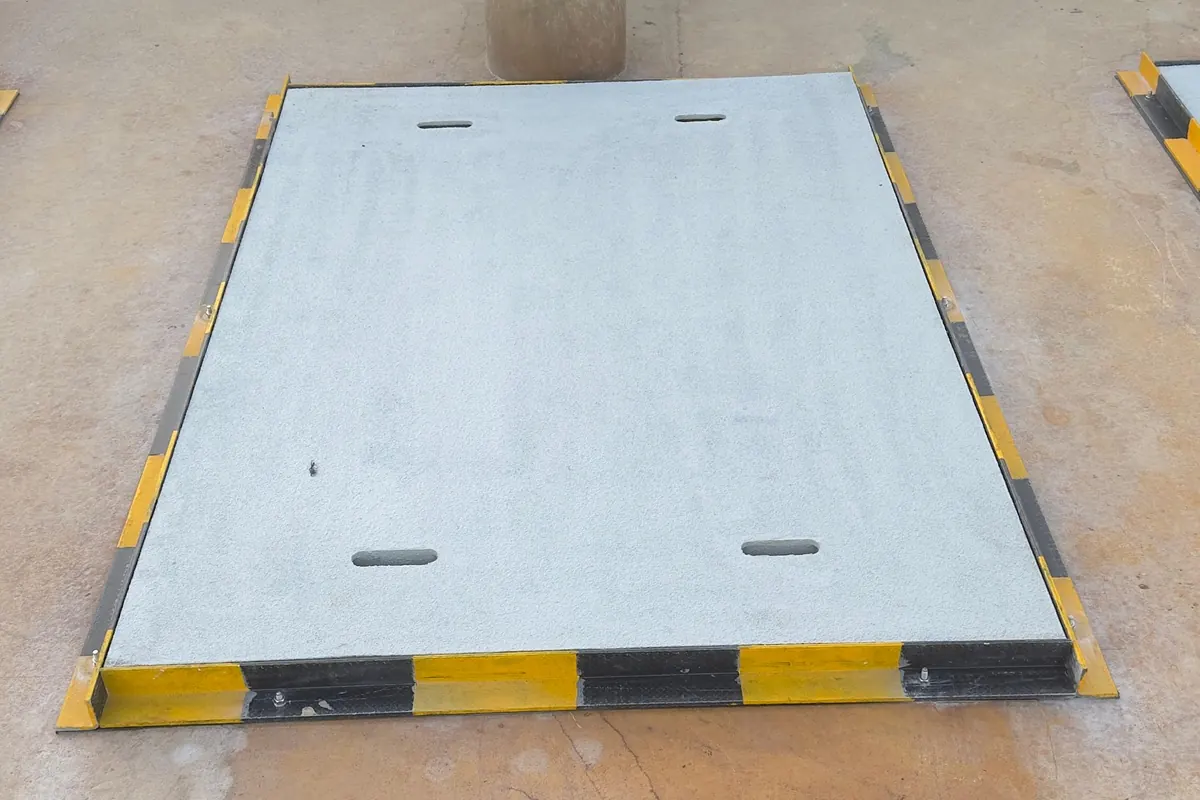

- Composite/GRP covers in load classes per EN 124, e.g. A15–D400 as specified
- Where we work
- Dubai, Abu Dhabi, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah and Fujairah
- Next step
- Free site inspection and a written, itemised quotation
GRP manhole installation in Dubai and the UAE
ESA Technical Services LLC is a Dubai-based technical services company, established in 2006, specialising in GRP works, waterproofing, insulation and installation across the UAE. GRP manhole installation in Dubai is part of our underground networks work alongside GRP pipelines.
In sewers, hydrogen sulphide gas converts to sulphuric acid on chamber walls and slowly dissolves concrete. Saline groundwater attacks reinforcement from outside. A GRP manhole resists both, and its light weight means smaller plant and faster installation in congested sites.
What is a GRP manhole?
A GRP manhole is an underground access chamber made from glass-reinforced plastic, usually filament-wound or moulded, with an integral base or benching, pipe connection spigots and a top section for the cover frame. It gives access for inspection and maintenance of pipelines while resisting corrosion from sewage, chemicals and groundwater.

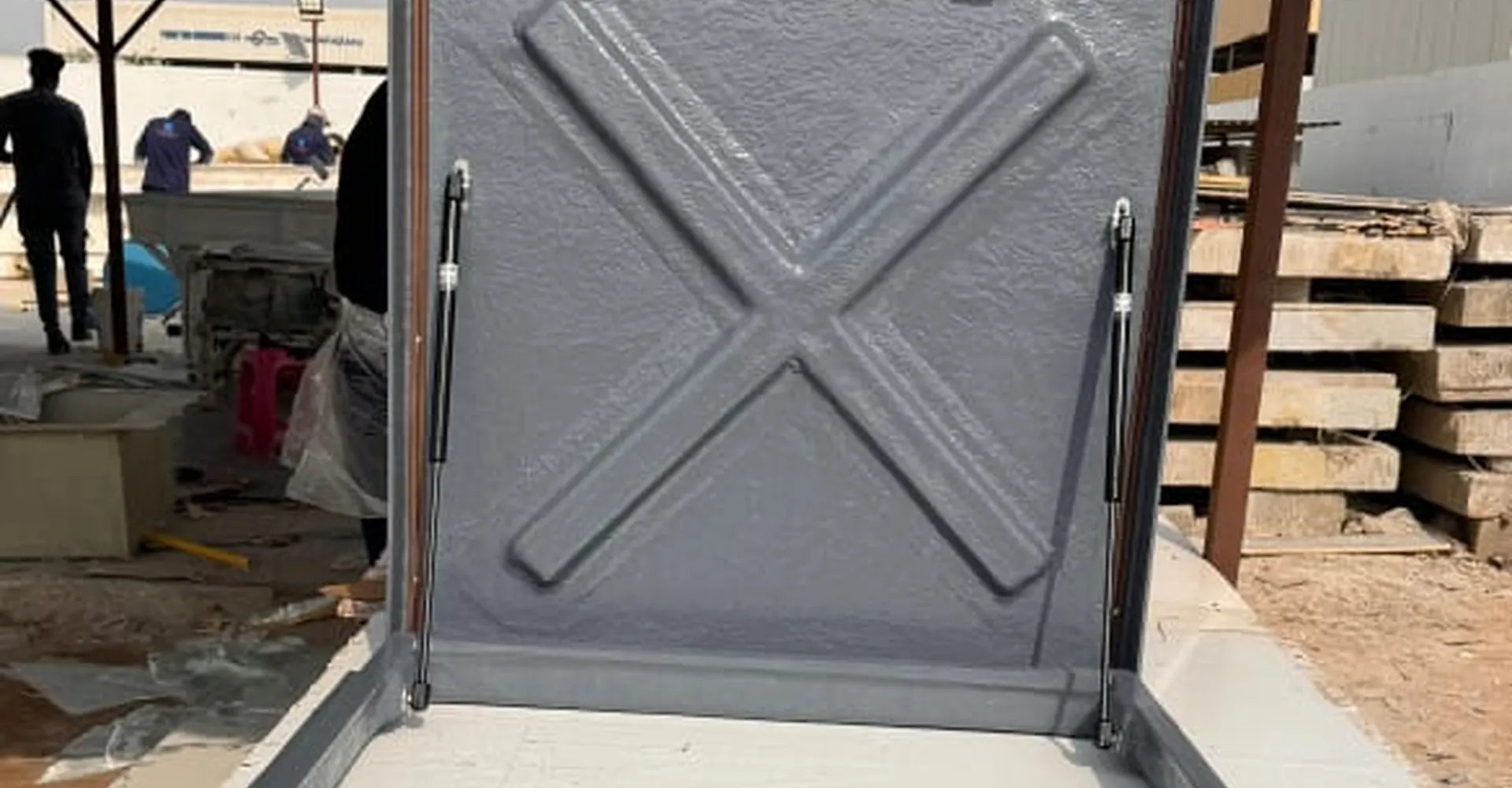

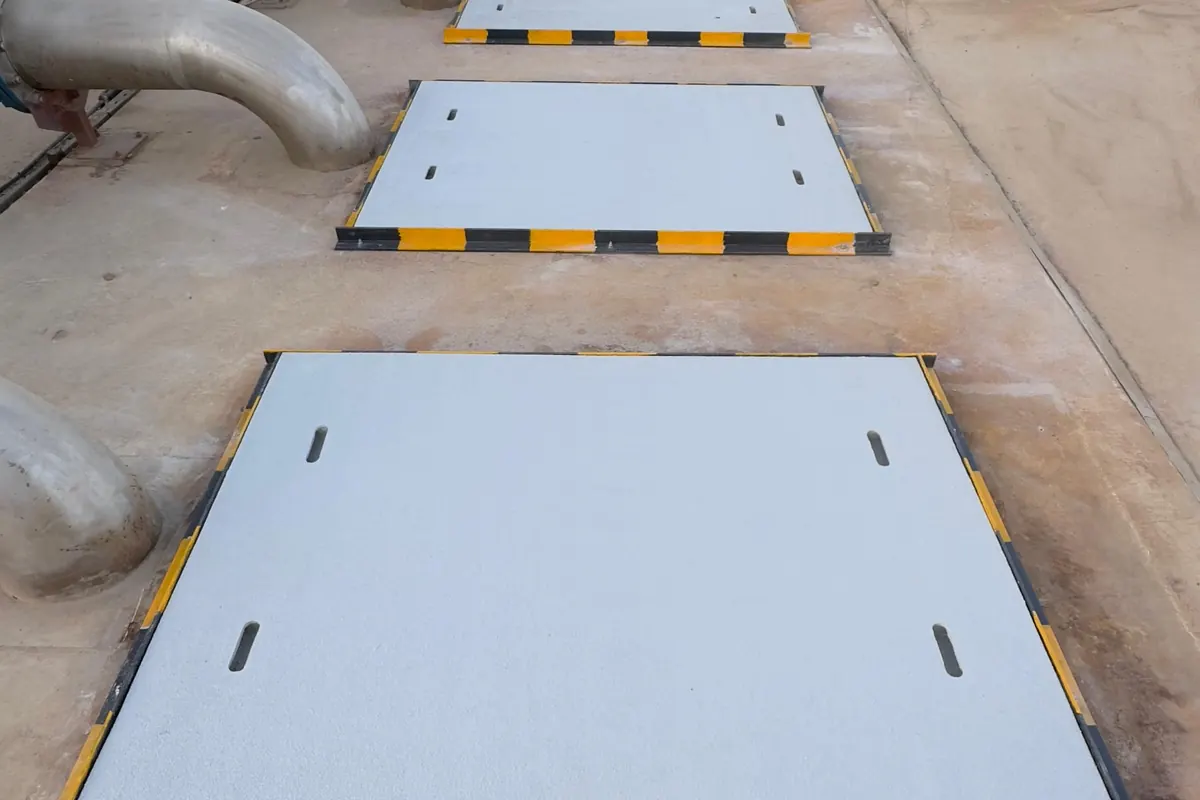

Because GRP chambers are light, flotation is a real design issue in Dubai's high water table. An empty chamber can be pushed upward by groundwater, so installation includes anti-flotation measures such as a concrete base collar or anchoring, as designed. Covers can be composite (GRP) to avoid theft and corrosion, rated for the traffic load.
When do you need grp manhole installation?
These are the signs and project triggers we see most often on UAE sites:
- New sewer and drainage networks. Inspection and access chambers
- Replacing corroded concrete manholes. Where H₂S damage is severe
- Industrial effluent lines. Chemical-resistant chambers
- High groundwater areas. Watertight chambers to reduce infiltration
- Irrigation and TSE networks. Valve and meter chambers
Our step-by-step grp manhole installation process
Design check
We confirm diameter, depth, connections, benching, cover class and anti-flotation details against the drawings.
Excavation and dewatering
The pit is excavated with safe support, and groundwater is lowered for a dry, stable base.
Base preparation
A granular or concrete base is prepared to level, including the anti-flotation collar or anchor as designed.
Setting the chamber
The GRP chamber is lifted with slings, set plumb, oriented to the pipe connections, and secured.
Pipe connections
Pipes are connected through gasketed spigots, flexible connectors or laminated joints to keep the chamber watertight.
Backfill
Selected backfill is placed and compacted evenly around the chamber in layers to avoid distortion.
Cover frame and reinstatement
The top is set to finished level and the frame bedded. The cover is fitted and surrounding paving or road reinstated by the project.
Testing
A watertightness test (water or vacuum as specified) is carried out and recorded.
Technical specifications
Values below are typical ranges. Final specifications are confirmed per project from drawings, operating conditions and the manufacturer's technical data sheets.
| Parameter | Typical specification |
|---|---|
| Chamber type | Filament-wound or moulded GRP; integral base/benching options |
| Diameters | Per network design (commonly ~800–1500 mm and larger) |
| Connections | Gasketed spigots, flexible couplings or laminated joints |
| Anti-flotation | Concrete collar/base or anchoring per design |
| Covers | GRP/composite or ductile iron, EN 124 load class as specified |
| Testing | Watertightness (water or vacuum) per specification |
Materials and methods
- GRP chambers: from established fabricators to the design
- Backfill: granular material compacted in layers
- Connectors: elastomeric seals and couplings
- Covers and frames: composite or ductile iron, to load class
Benefits of grp manhole installation
Corrosion-proof
Resists H₂S-derived acid and saline groundwater.
Watertight
Reduces groundwater infiltration and wastewater exfiltration.
Fast installation
Light chambers go in with smaller plant and less time.
Long service
Minimal deterioration compared with unprotected concrete.
Smooth interior
Less build-up of debris and easier maintenance.
Theft-resistant covers
Composite covers have no scrap metal value.
Applications across the UAE
| Sector | Typical application | Why it fits |
|---|---|---|
| Utilities | Sewer and storm drainage networks | Corrosion resistance |
| Industrial | Effluent and chemical drains | Chemical-resistant resin |
| Communities & villas | Private drainage and irrigation | Light, easy installation |
| Infrastructure | Road and TSE networks | Load-rated covers |
GRP vs concrete manhole
| Factor | GRP manhole | Precast concrete manhole |
|---|---|---|
| Corrosion (H₂S) | Resistant | Vulnerable without lining |
| Weight | Light | Very heavy |
| Watertightness | Monolithic | Multiple joints |
| Flotation risk | Needs anchoring | Low |
| Installation speed | Fast | Slower |
Quality control and safety
- Excavation support and dewatering in place
- Level and plumb checks
- Connection seals inspected
- Backfill compaction recorded
- Anti-flotation measures verified
- Watertightness test; confined-space controls for any entry
Why choose ESA for grp manhole installation
- Underground GRP experience since 2006. Pipes, joints and chambers
- Flotation-aware. We design around Dubai's water table
- Watertight connections. Joined by our own laminators where needed
- Tested. Records at handover
GRP Manhole Installation: frequently asked questions
Will a GRP manhole float in high groundwater?
It can if not anchored, which is why installation includes an anti-flotation collar or anchoring as designed, plus correct backfill.
What load can GRP manhole covers take?
Covers are available in EN 124 load classes, from pedestrian (A15) to roads (D400 and above). We install the class specified for the location.
Can a concrete manhole be lined with GRP instead?
Yes, GRP lining or a GRP insert can rehabilitate a corroded concrete manhole. We'll assess which option suits your network.
How long does a GRP manhole last?
GRP chambers are designed for a long service life in corrosive sewer environments, far longer than unprotected concrete under similar H₂S exposure.
