- What it is
- Installing GRP walls inside tanks that direct water along a set path instead of letting it short-circuit from inlet to outlet.
- Best for
- Potable water tanks, chlorine contact tanks, treatment basins and storage reservoirs.
- Key benefit
- Fresher water, better disinfection contact time and less sediment build-up.
- Designs
- Serpentine, partial-height and slotted baffle arrangements
- Where we work
- Dubai, Abu Dhabi, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah and Fujairah
- Next step
- Free site inspection and a written, itemised quotation

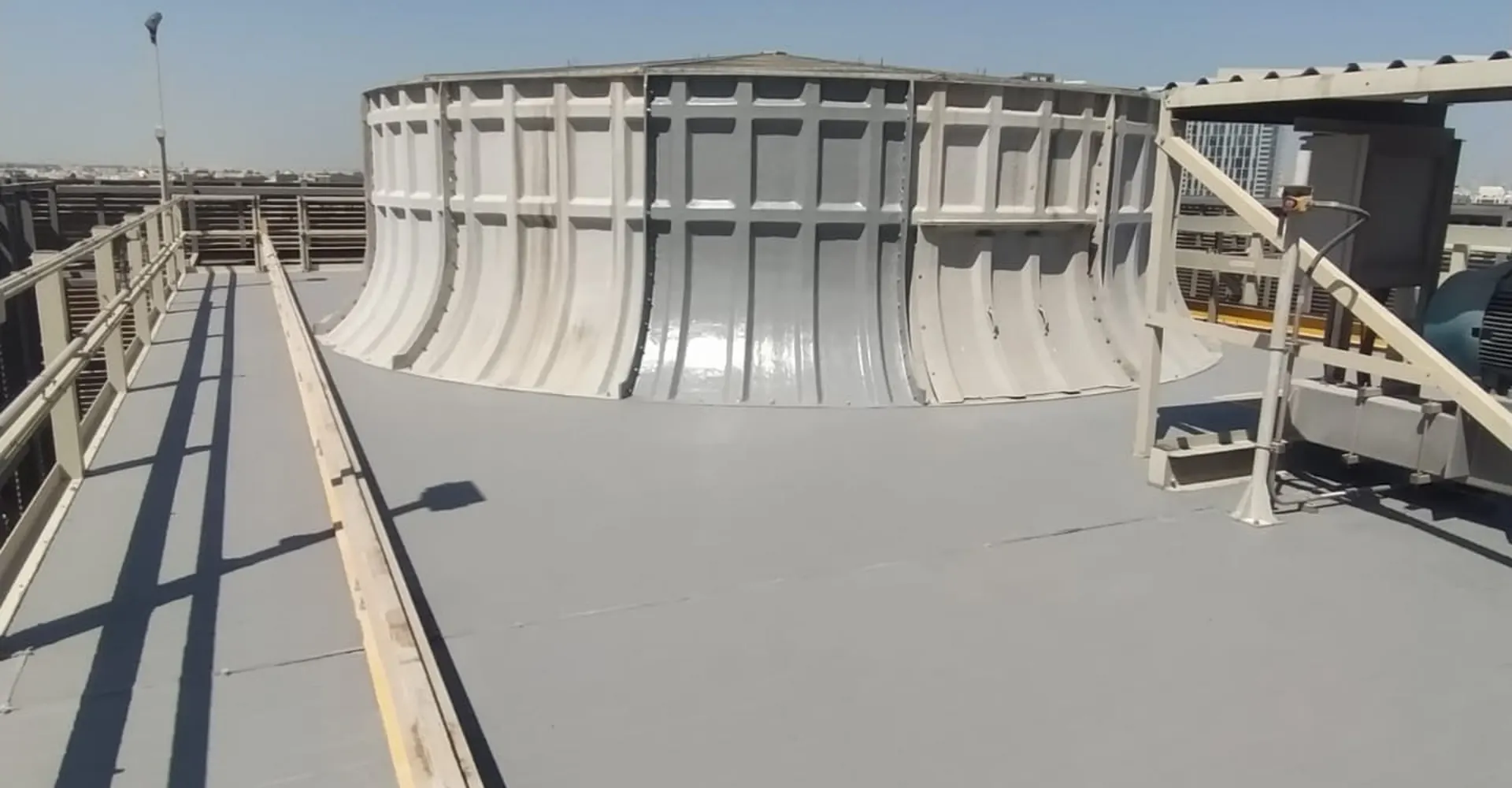

GRP baffle wall installation for UAE water tanks
ESA Technical Services LLC is a Dubai-based technical services company, established in 2006, specialising in GRP works, waterproofing, insulation and installation across the UAE. GRP baffle wall installation is a small scope with a big effect on water quality in tanks across the UAE.
In a tank without baffles, incoming water can flow almost straight to the outlet while water in the corners barely moves. That stagnant water ages, warms under the UAE sun and loses disinfectant residual, which are ideal conditions for bacterial growth. Baffles fix the flow pattern.
What is a baffle wall in a water tank?
A baffle wall is an internal wall or partial wall inside a tank that forces water to follow a longer, controlled path from inlet to outlet. This reduces short-circuiting and stagnant dead zones, lowers water age, improves mixing, increases disinfectant contact time and can reduce sloshing in tanks subject to movement.
Baffles differ from partition walls. A partition seals the tank into separate compartments, while baffles leave the tank as one volume but guide the flow through it. In chlorine contact tanks, baffling is used to achieve the required contact time before water leaves.
When do you need grp baffle wall installation?
These are the signs and project triggers we see most often on UAE sites:
- Water quality issues. Low chlorine residual, odours or biofilm in stored water
- Large or long tanks. Where inlet and outlet are close together
- Chlorine contact tanks. To achieve design contact time
- Treatment basins. For flow distribution and settling
- Mobile or seismic-exposed tanks. To reduce sloshing loads
Our step-by-step grp baffle wall installation process
Flow review
We review inlet and outlet positions and the designer's baffle layout, or propose a practical arrangement for the tank.
Tank preparation
The tank is drained, cleaned and prepared, and confined-space controls are applied.
Fixing points
Brackets or bonding zones are prepared on the floor, walls and roof panels without compromising the tank's watertightness.
Baffle installation
GRP baffle panels are installed, bolted or laminated in the designed positions, with openings or gaps as the design requires.
Securing and sealing
Baffles are secured against water movement, and any penetrations of the tank shell are sealed and laminated.
Inspection and refill
Positions, fixings and seals are checked, the tank is cleaned and disinfection coordinated before refilling.
Technical specifications
Values below are typical ranges. Final specifications are confirmed per project from drawings, operating conditions and the manufacturer's technical data sheets.
| Parameter | Typical specification |
|---|---|
| Material | Potable-grade GRP panels or laminated GRP sheets |
| Layout | Per hydraulic design (serpentine, over/under, slotted) |
| Fixings | Stainless steel or GRP brackets and bolts |
| Sealing | Lamination and potable-suitable sealants at any shell penetrations |
| Testing | Visual inspection; refill and leak check |
Materials and methods
- GRP baffle panels: moulded or cut from GRP sheet
- Brackets and fixings: corrosion-resistant stainless steel or GRP
- Potable resin: for bonding and sealing
- Sealants: suitable for drinking-water contact
Benefits of grp baffle wall installation
Lower water age
Water moves through the tank instead of stagnating in corners.
Better disinfection
Longer contact time and more uniform chlorine residual.
Less biofilm and sediment
Fewer dead zones for growth and deposits.
Controlled sloshing
Reduces wave loads in tanks subject to movement.
Corrosion-free
GRP baffles last in constant immersion.
Low cost upgrade
A modest investment for measurable quality gains.
Applications across the UAE
| Sector | Typical application | Why it fits |
|---|---|---|
| Buildings | Rooftop and basement potable tanks | Fresher water at the tap |
| Water utilities | Chlorine contact tanks, reservoirs | Achieves contact time |
| Industrial | Process and RO water storage | Consistent water quality |
| Transport & mobile | Tanker or skid tanks | Reduced sloshing |
Quality control and safety
- Layout set out against the design drawing
- Fixing integrity checked
- No new leak paths through the tank shell
- Potable-suitable materials only
- Confined-space procedures
- Handover photos and layout record
Why choose ESA for grp baffle wall installation
- Water tank specialists. Installation, rectification and upgrades
- Since 2006. Experience across UAE buildings
- Hygiene-focused. Materials and cure suited to drinking water
- Practical design input. Layouts that work in real tanks
GRP Baffle Wall Installation: frequently asked questions
What's the difference between a baffle and a partition wall?
A partition wall seals a tank into separate compartments. A baffle guides flow within one volume to reduce stagnation and improve contact time.
Can baffles be added to an existing GRP tank?
Usually, yes. They can be bolted or laminated in during a planned shutdown after the tank is drained and cleaned.
Do baffles reduce tank capacity?
Negligibly. The panels take up very little volume.
Will baffles fix low chlorine in my tank?
They often help by reducing water age and dead zones, but low residual can have other causes too, so we look at the whole system.
